COMETEO 百叶气象防护罩,用于气象传感器

百叶气象防护罩,用于保护温湿度传感器,例如提供防辐射功能

独特优化设计带来卓越功能:

- 变送器在防护罩内可得到完美保护

- 可避免下放传感器/探针凝结

- 最优化气象保护,确保设备时刻安全.

- 被动式通风,安装简便,无特殊要求



百叶气象防护罩保护气象用温湿度传感器。

优化设计确保传感器最少程度收到辐射干扰影响,并确保传感器周围气流通风良好。

顶板直径现已扩大至210mm,确保在高辐射角度下仍为传感器提供保护。

防护罩由ASA塑料打造,能够抵御机械损伤与紫外线辐射。

叶片经过全新设计与选材,具备更低导热性以及更有的气象保护能力。

通过针对放置位置,气候,被保护传感器材质多方面研究,实现更进一步优化设计。

  • 型号
    F8200

技术参数

测量参数

温度
相对湿度
CO2
气压

GENERAL TECHNICAL DATA

Supply voltage 12 Vdc
Power consumption of fan 0.6 W
Pulse output 2 pulse / rev. (max. current of output is < 5 mA, the pulse output is not protected against short circuits)
Temperature operating range -30 to +80 °C
Relative humidity operating range 0 to 100 %RH
Storage temperature range -30 to +80 °C
Storage relative humidity range 0 to 100 %RH (no condensation)

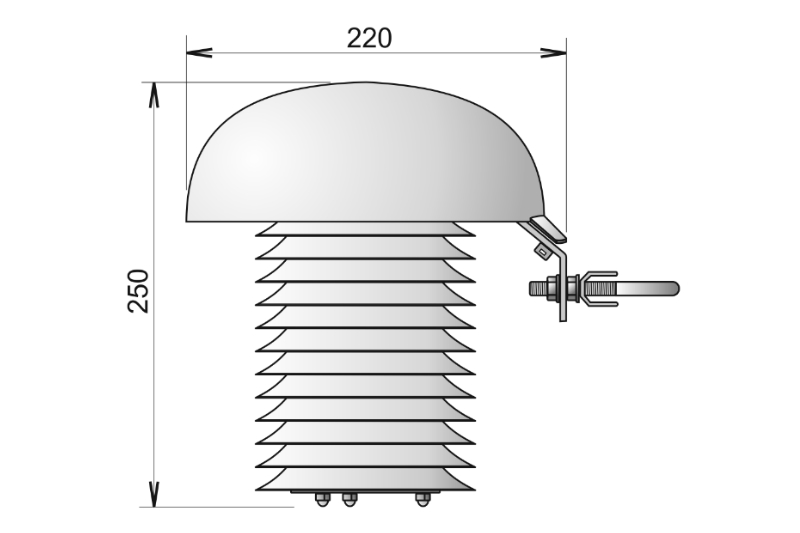

Dimension 220 mm (diameter), 250 mm (height)
Weight approx. 900 g
Material ASA - UV stabilized, antistatic
Warranty 3 years

Features

F8200
COMETEO is made of ASA plastic which is resistance to mechanical damage and UV radiation. ABS plastic is very stable over time.
F8200

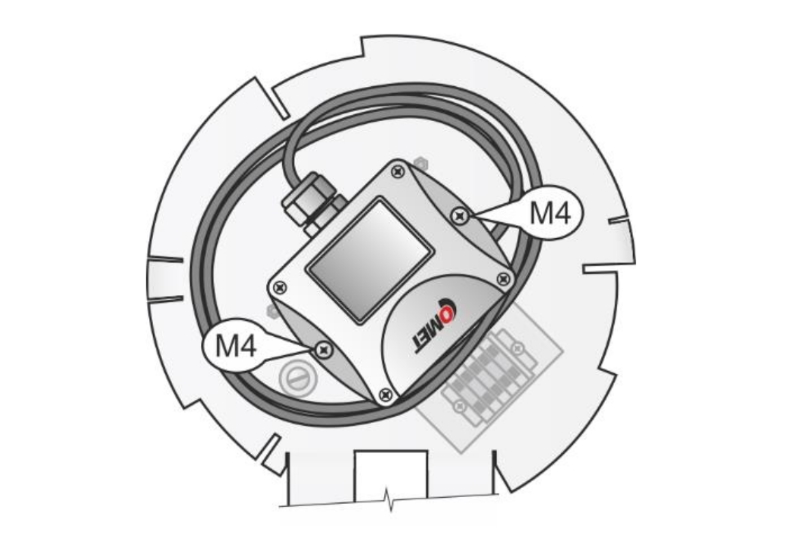

Transmitter is entirely protected inside the radiation shield by maximized top cover area which provides advanced weather protection.

Applications:

Applications - Metrology

Meteorology - COMET sensors together with COMET radiation shields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Applications - Snow Guns

Snow Guns

Application - HVAC

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.
