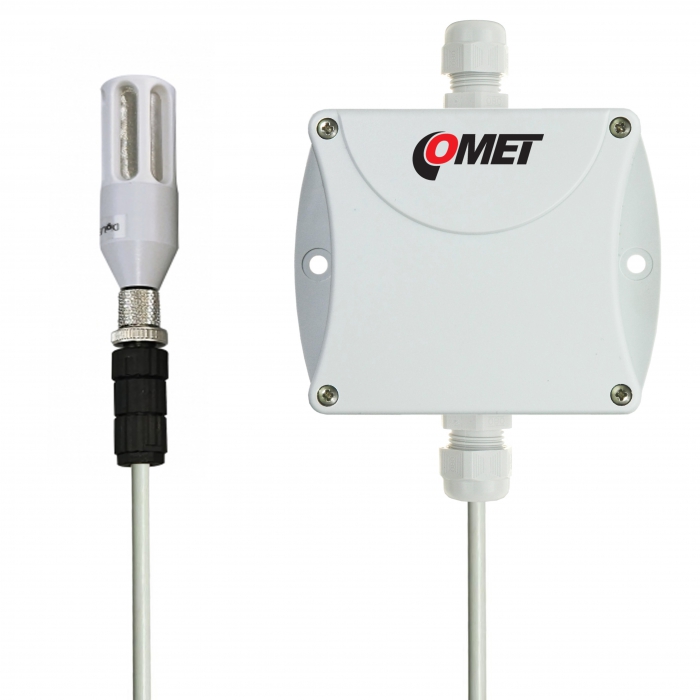

Economy humidity and temperature transmitter with external interchangeable probe, cable 2 meters, 4-20mA outputs

低成本环境温度, 相对湿度变送器. 室外/室内使用均可。

内置相对湿度、温度传感器。.

  • 型号
    P3116-2
  • 3 年

技术参数

测量参数

温度
相对湿度

TEMPERATURE SENSOR

Measuring range -20 to +80 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±1.8 % RH in the range 0 to 90 %RV při 23 °C
Resolution 0.1% RH

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C, external probe -20 to +80 °C
Channels external interchangeable temperature and humidity probe
Output 4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation all temperature range
Power 9-30 Vdc
Protection class IP65 electronics; IP40 sensors
Dimensions 89 x 115 x 40 mm; probe 100 x 18 mm
External probe cable length 2 meters
Weight approx. 150 g
Warranty 3 years
